Product Description

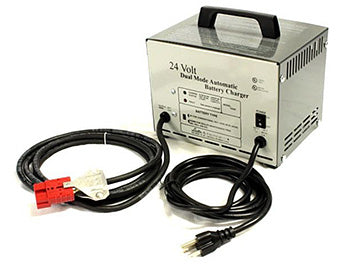

WIN8.628-403.0 is a 24VDC, 12A continuous SCR battery charger with SB50 red connector, designed as an aftermarket or OEM equivalent for Windsor and Karcher floor scrubber and sweeper applications, supporting C50 automatic charging control and compatible with wet-cell and sealed batteries.
Specifications
Electrical
| Output Voltage | 24VDC nominal |
| Output Current | 12A continuous |
| Input Voltage | 120VAC single phase |
| Input Frequency | 60 Hz |
| Control Circuit | Automatic shutoff, C50 charging profile |
| Fuse Protection | Integrated output fuse, 15A rating |
Material & Construction
| Housing Material | Powder coated steel enclosure |
Part Numbers
| Manufacturer Part Number | 8.628-403.0 |
| OEM Part Number | WIN8.628-403.0 |
| Cross-Reference Part Numbers | Replaces Windsor 8.628-403.0, compatible with Karcher 8.628-403.0 |
| Superseded Part Numbers | Supersedes select Windsor/Karcher legacy battery charger part numbers for 24V C50 systems |
Performance Specifications
| Duty Cycle | Continuous duty at 12A output |
Frequently Asked Questions
Q: What is the output voltage and amperage of the WIN8.628-403.0 charger?
A: The WIN8.628-403.0 is a 24VDC battery charger with 12A continuous SCR output. It is designed for Windsor and Karcher floor scrubber and sweeper applications requiring 24V charging systems.
Q: What connector does this charger use?
A: The WIN8.628-403.0 features an SB50 red connector. Verify your equipment connector matches this style before ordering.
Q: What battery types does the WIN8.628-403.0 work with?
A: This charger is compatible with both wet-cell and sealed lead-acid batteries in 24V configurations. It supports C50 automatic charging control, which manages the charging cycle automatically.
Q: Is this an OEM or aftermarket part?
A: The WIN8.628-403.0 functions as both an aftermarket replacement and OEM equivalent. It replaces Windsor part number 8.628-403.0 and is compatible with Karcher 8.628-403.0 applications. It supersedes select Windsor and Karcher legacy battery charger part numbers for 24V C50 systems.
Q: What equipment uses the WIN8.628-403.0?
A: This charger is designed for Windsor and Karcher floor scrubber and sweeper equipment. Confirm your specific model compatibility with the OEM documentation before purchase.
