Product Description

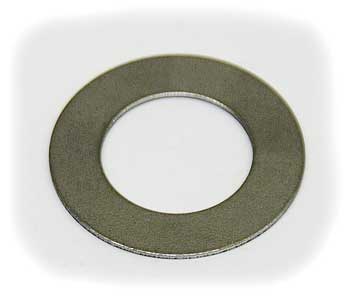

The RA 671-041-09 is a precision flat washer engineered for Raymond electric pallet trucks, providing critical structural support and alignment in caster and axle assemblies. This direct replacement part ensures proper load distribution and component spacing in wheel systems.
Designed for use on Raymond 8300, 8400, and 8500 Series electric lift trucks, this washer maintains the reliability and performance of your equipment's wheel assembly.
Specifications
Product Overview
| Part Number | RA 671-041-09 |
| Manufacturer | Raymond |
| Product Type | Flat Washer |
Physical Specifications
| Material | Steel (hardened) |
| Function | Load distribution, fastener support, component alignment and spacing |
Compatibility
| Application | Caster and axle assemblies, wheel support components |
| Compatible Equipment Models | Raymond 8300, 8400, 8500 Series electric pallet trucks |
Frequently Asked Questions
Q: What is the RA 671-041-09 flat washer used for?
A: The RA 671-041-09 is a flat washer designed for caster and axle assemblies on Raymond electric pallet trucks. It provides structural support and maintains alignment for rotating parts in the wheel assembly.
Q: Which Raymond electric pallet truck models use this washer?
A: The RA 671-041-09 is compatible with Raymond 8300, 8400, and 8500 series electric pallet trucks. Verify your equipment series to confirm fitment.
Q: What is the function of a flat washer in a caster assembly?
A: Flat washers distribute load and prevent fasteners from pulling into softer materials. In caster assemblies, they maintain proper spacing between wheel components and ensure even pressure distribution across bearing surfaces.
Q: Is this a direct replacement for Raymond equipment?
A: Yes. The RA 671-041-09 is the factory-spec part number for this flat washer on Raymond 8300, 8400, and 8500 series equipment. Using factory-spec parts ensures correct dimensions and material specifications for reliable performance.
Q: What material is this washer made from?
A: The RA 671-041-09 is manufactured from hardened steel construction, providing the strength needed to support axle and caster assembly loads without deformation.
Q: How do I verify this part fits my equipment?
A: Check your equipment's model number (8300, 8400, or 8500 series) and consult your parts manual. You can also contact Raymond directly with your equipment serial number for confirmation.
Q: What maintenance is recommended for this component?
A: Flat washers in wheel assemblies should be inspected periodically during routine maintenance. Replace if you notice corrosion, cracks, or deformation that could affect wheel alignment or bearing function.
