Product Description

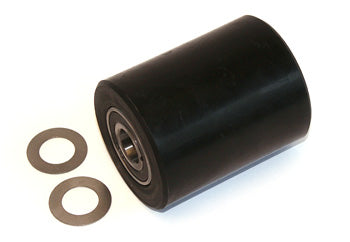

Premier PE 221-N load roller assembly for manual pallet jacks features a crowned nylon tread and nylon hub, equipped with sealed ball bearing and bushings for smooth, reliable load handling. This direct replacement assembly is interchangeable with select Prime Mover, Rol-Lift, and Lift-Rite equipment, making it an excellent choice for facilities managing multiple pallet jack brands.
Specifications
Dimensions & Performance
| Tread Design | Crowned nylon |
| Bearing Type | Sealed ball bearing with bushings |
Material
| Tread Material | Nylon, high-abrasion polymer |
| Hub Material | Nylon, reinforced |
Part Numbers
| Part Number | PE 221-N |
| Alternative Designations | 221-N, PE221-N |
| Cross Reference Numbers | Prime Mover P-13861-A, N-13861-A; Rol-Lift RL WHL-5010-EPTUM; Lift-Rite LRP 5000, LF PL20210S-B |
Compatibility
| Compatible Equipment | Premier Model 5000 manual pallet jacks; interchangeable with select Prime Mover, Rol-Lift, and Lift-Rite pallet jack models |
Frequently Asked Questions
Q: What equipment does the PE 221-N load roller fit?
A: The PE 221-N is a load roller assembly for Premier Model 5000 manual pallet jacks. It is also interchangeable with select Prime Mover, Rol-Lift, and Lift-Rite models. Alternative designations include 221-N and PE221-N.
Q: What materials are used in the PE 221-N?
A: The PE 221-N features a crowned nylon tread and a nylon hub. It is equipped with a sealed ball bearing and bushings as part of the complete assembly.
Q: What cross-reference part numbers are equivalent to the PE 221-N?
A: The PE 221-N is equivalent to Prime Mover P-13861-A and N-13861-A. It is also interchangeable with Rol-Lift RL WHL-5010-EPTUM, Lift-Rite LRP 5000, and Lift-Rite LF PL20210S-B. Alternative designations include 221-N and PE221-N.
Q: How does the PE 221-N differ from PE 221-D?
A: The PE 221-N uses nylon tread and nylon hub, while the PE 221-D uses ultra-polyurethane tread and aluminum hub. The PE 221-N is lighter weight and suitable for general material handling, while the PE 221-D offers greater abrasion resistance in demanding environments.
Q: What is the tread design of the PE 221-N?
A: The PE 221-N features a crowned nylon tread. The crown shape helps with load distribution and stability when used in the load wheel position on manual pallet jacks.
Q: Does the PE 221-N come with sealed bearings?
A: Yes. The PE 221-N includes a sealed ball bearing and bushings as part of the complete load roller assembly. The sealed bearing provides protection against dirt and moisture infiltration.
Q: How should the PE 221-N be stored?
A: Store the load roller assembly in a clean, dry environment at room temperature. Keep the sealed bearing protected from moisture and dirt. Store away from direct sunlight and extreme temperatures.
Q: What is the typical service life of the PE 221-N?
A: The sealed bearing design extends service life significantly in typical material handling environments. Actual lifespan depends on load intensity, frequency of use, and maintenance practices. Inspect regularly for wear and replace when tread or bearings show signs of deterioration.
