Product Description

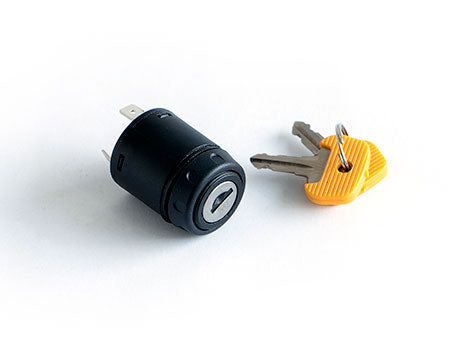

Key switch
Frequently Asked Questions
Q: What is the function of the MU 77800114 key switch on a Multiton electric pallet jack?
A: The MU 77800114 is the ignition key switch that controls power to the electric pallet jack. It allows the operator to enable or disable the truck, preventing unauthorized use and protecting the battery from unnecessary discharge. The switch also serves as a master cutoff in emergencies.
Q: What voltage is the MU 77800114 key switch rated for?
A: The MU 77800114 is rated for 12 VDC operation typical of Multiton TM Series and EMB Series electric pallet jacks. Do not use this switch on higher-voltage equipment (24V, 48V) as it is not rated for those currents. Verify the battery voltage on your equipment before ordering.
Q: How do I troubleshoot if the MU 77800114 key switch does not power on the truck?
A: A non-responsive key switch can indicate: the switch contacts are corroded or worn, internal wiring is loose, the battery is dead or disconnected, or the truck has a blown fuse. Check the battery voltage first. If the battery is good and the switch still does not engage, the switch contacts likely need replacement.
Q: Can the MU 77800114 key switch be repaired, or does it need to be replaced?
A: The MU 77800114 is a sealed unit and is not field-serviceable. Internal contacts cannot be cleaned or adjusted. If the switch fails, replace the entire switch assembly. Attempting to disassemble or repair the switch will void any warranty and may create electrical hazards.
Q: What is the mounting configuration of the MU 77800114?
A: The MU 77800114 uses a standard dashboard or control panel mount with two or three screw holes, depending on the control panel design of your equipment. Verify the mounting hole pattern on your truck before ordering. The switch comes with a key to prevent theft and restrict operation.
