Product Description

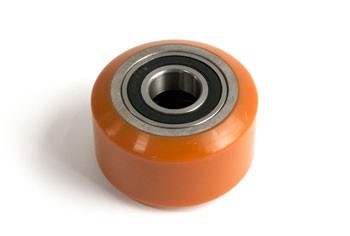

RA 632-076-001-A is an OEM Raymond load wheel assembly designed for undercarriage mounting on 8300, 8400, and 8500 series electric pallet trucks. This assembly features a 3.25 inch outer diameter, 2.00 inch tread width, high-durability 95A polyurethane tread on a cast iron core, and is equipped with precision 6204-2RS ball bearings for 20 mm axles. Directly cross-references to Raymond 632-076 and related part numbers, ensuring precise fitment and long operational life under electric lift truck l
Specifications
Material & Construction
| Wheel Material | Premium cast polyurethane, 95A shore hardness, molded on cast iron hub |
| Core Material | Cast iron |
| Tread Material Specification | High-wear polyurethane, bonded to metallic core |
| Hardness Rating | Shore A95 |
Dimensions & Specifications
| Bearing Type | Precision 6204-2RS ball bearings |
Part Numbers
| Part Number | RA 632-076-001-A |
| Manufacturer Number | RA632-076-001-A |
| Cross-Reference Part Numbers | Raymond 632-076, RA632-076-001, RA632076001, 632076001, 632-076-A, 632-076, 632-076-XL, 632-076-107-A |
| Direct Replacement For | Raymond 632-076-A, 632-076 |
| Compatible Equipment | Raymond 8300, 8400, 8500 series electric pallet trucks |
Frequently Asked Questions
Q: What Raymond models is the RA 632-076-001-A load wheel assembly designed for?
A: The RA 632-076-001-A is designed for undercarriage mounting on Raymond 8300, 8400, and 8500 series electric pallet trucks, ensuring precise fitment and long operational life on these equipment models.
Q: What are the wheel dimensions?
A: The RA 632-076-001-A has an outer diameter and tread width. These dimensions are critical for proper fitment verification on Raymond 8300, 8400, and 8500 undercarriage assemblies.
Q: What type of bearings does this wheel assembly use?
A: The RA 632-076-001-A is equipped with precision 6204-2RS ball bearings for 20 mm axles. The 2RS designation indicates sealed bearing cartridges that provide protection against contamination and extend service life.
Q: What are the cross-reference part numbers for the RA 632-076-001-A?
A: The RA 632-076-001-A cross-references to Raymond 632-076, RA632-076-001, RA632076001, 632076001, 632-076-A, 632-076, 632-076-XL, and 632-076-107-A. Always verify part numbers with your equipment documentation before ordering.
Q: What materials are used in the RA 632-076-001-A construction?
A: The RA 632-076-001-A features a cast iron core with high-durability 95A shore hardness polyurethane tread bonded to the metallic hub. This combination provides excellent weight-bearing capacity and abrasion resistance for continuous-duty warehouse applications.
Q: How should this wheel assembly be stored?
A: Store the RA 632-076-001-A in a clean, dry location away from direct sunlight and extreme temperatures. Keep wheels in an upright position to prevent deformation of the polyurethane tread during extended storage periods.
Q: What is the expected service life of the RA 632-076-001-A?
A: Service life depends on operating conditions, load, and maintenance frequency. Regular inspection of bearing condition and tread wear, along with proper lubrication and axle maintenance, will maximize the operational life of this wheel assembly.
