Product Description

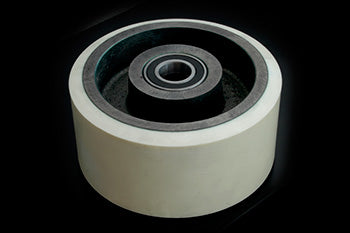

The Raymond RA 632-078-002-A Idler Caster Assembly is a precision polyurethane idler wheel and bearing assembly for Raymond 7400 Series electric reach trucks. Features Poly XL tread with 97A hardness, and sealed 6206 bearing. Fully interchangeable with RA 632-078, RA 632-078-002, RA 632-078-007-A, and related Raymond part numbers. Pre-assembled and ready for axle mounting.
Specifications
Material
| Tread Material | Polyurethane (Poly XL compound) |
| Tread Hardness | 97 Shore A |
| Core Material | Steel |
| Finish | Precision machined, protective surface coating |
Wheel Specifications
| Bearing Type | Sealed 6206 Ball Bearing |
Part Numbers
| Part Number | RA 632-078-002-A |
| Cross-Reference Part Numbers | Supersedes RA 632-078-002, equivalent to RA 632-078, RA 632-078-001, RA 632-078-004, RA 632-078-007, RA 632-078-101, RA 632-078-107, RA 632-078-XL, RA 632-078/007, RA 632-078/007-A, RA 632-078/107-A, RA 632-078-101-A, RA 632-078-107-A, 632078002, 632078, RA632078, RA632078002 |
| Compatible Models | Raymond 7400, 7500, 7600, 7700 Series Reach Trucks |
Frequently Asked Questions
Q: What does the RA 632-078-002-A assembly include?
A: The RA 632-078-002-A is a complete idler caster assembly for Raymond 7400 Series electric reach trucks. It includes an polyurethane wheel, a bore, and a sealed 6206 ball bearing pre-assembled and ready for mounting.
Q: What is the wheel material specification for the RA 632-078-002-A?
A: The RA 632-078-002-A features a Poly XL polyurethane tread with a 97A Shore A hardness rating, bonded to a steel core. The tread is precision machined and receives a protective surface coating to extend service life.
Q: What bearing is included with the RA 632-078-002-A?
A: The RA 632-078-002-A comes with a sealed 6206 ball bearing. The sealed design protects the bearing from contamination and water ingress, reducing maintenance needs in typical warehouse environments.
Q: Which Raymond part numbers is the RA 632-078-002-A interchangeable with?
A: The RA 632-078-002-A is fully interchangeable with RA 632-078, RA 632-078-002, RA 632-078-007-A, and related Raymond part numbers. Always confirm your current assembly specs before ordering a replacement.
Q: What maintenance does the RA 632-078-002-A require?
A: The sealed bearing requires minimal maintenance. Periodically inspect the wheel for tread wear, cracks, or flat spots. If the wheel does not roll freely or shows signs of bearing play, the assembly should be replaced.
Q: What is the bore diameter for the RA 632-078-002-A?
A: The RA 632-078-002-A has a bore designed for a standard reach truck axle. The bearing and wheel assembly are precision-machined for a secure, direct fit.
