Product Description

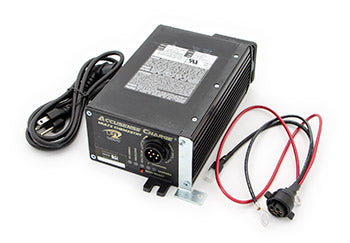

Hyster HY 4023332 Battery Charger (HF) is a 24VDC, 20A output HF battery charger designed for Hyster electric lift trucks, compatible with models W40Z and W45Z. Input power is rated at 120VAC single-phase, and the charger features a continuous duty cycle with a powder coated steel enclosure.
Specifications
Electrical
| Charger Output Voltage | 24VDC |
| Charger Output Current | 20A |
| Input Voltage | 120VAC, single-phase |
| Input Frequency | 60 Hz |
Material & Construction
| Enclosure Material | Powder coated sheet steel |
Part Numbers
| OEM Part Number | 4023332 |
| Manufacturer Part Number | HY4023332 |
Frequently Asked Questions
Q: What is the output specification of the HY 4023332 battery charger?
A: The HY 4023332 is a 24VDC, 20A output HF (High Frequency) battery charger. Input power is 120VAC single-phase at 60 Hz. The charger operates on a continuous duty cycle, making it suitable for extended charging operations in warehouse and fleet environments.
Q: Which Hyster electric lift truck models does the HY 4023332 charger support?
A: The HY 4023332 is designed for Hyster W40Z and W45Z electric lift truck models. Before installation, verify your equipment model matches these specifications. Using the charger on incompatible models may result in improper charging and battery damage.
Q: What power source is required for the HY 4023332?
A: The HY 4023332 requires 120VAC single-phase input at 60 Hz. Ensure your facility has standard 120VAC power available. The charger does not accept 240VAC or three-phase input. Use a grounded outlet appropriate for 20A charging output.
Q: What is the enclosure material and construction of this charger?
A: The HY 4023332 features a powder coated sheet steel enclosure. The powder coat finish provides corrosion resistance for indoor warehouse environments. The enclosure protects internal components during continuous duty charging cycles.
