GWK-EWP40-LW-XL

Frequently Asked Questions

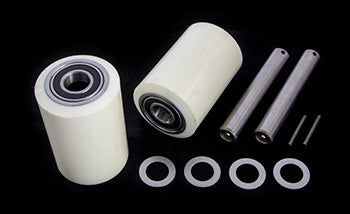

Q: Is GWK-EWP40-LW-XL the same as the standard GWK-EWP40-LW load wheel kit?
A: No. GWK-EWP40-LW-XL features 97A polyurethane (harder, more wear-resistant) versus the standard kit which uses 95A. The XL variant also includes upgraded precision roller bearings with sealed construction rated for higher load cycles and cooler ambient temperatures. XL is designed for heavy-duty operations, cold storage environments, or high-traffic facilities. Both kits fit the Barrett EWP40, but XL will outlast the standard kit in demanding conditions by approximately 40-60 percent.

Q: Can I use GWK-EWP40-LW-XL wheels on older Barrett EWP40 units or serial number ranges?
A: GWK-EWP40-LW-XL is compatible with all serial ranges of the Barrett EWP40 electric walkie pallet jack as long as the base model designation is EWP40. Prior to ordering, verify the model badge on your jack nameplate and confirm axle bore diameter matches standard EWP40 specification (typically 12-14mm bore). If your unit is significantly older (pre-2010), consult your equipment documentation or contact Barrett service to confirm bearing type compatibility; very old units may have non-standard axle configurations.

Q: What symptoms indicate sealed bearing failure in GWK-EWP40-LW-XL wheels?
A: Early signs include a slight grinding or rumbling noise that increases during direction changes or turns. You may feel vibration through the jack handle. As failure progresses, the affected wheel becomes noticeably hotter to the touch than the other wheels (more than 10 degrees F warmer). The jack may pull to one side despite steering corrections. In advanced failure, the wheel locks or seizes completely, immobilizing the jack. Do not attempt to operate the jack if bearing failure is suspected; the failed bearing can degrade rapidly and damage the axle or mounting bracket.

Q: Are the 97A wheels on GWK-EWP40-LW-XL safe for very smooth polished floors?
A: Yes, the 97A non-marking polyurethane is formulated to minimize floor marking even though it is harder than 95A. However, the increased hardness does mean slightly reduced grip on very smooth or freshly waxed surfaces. Do not operate at high speed or make sharp turns on wet epoxy floors as traction may be compromised. If your facility maintains unusually smooth or slippery floor conditions, test steering and braking responsiveness in low-traffic areas before full deployment. For pharmaceutical or food-grade facilities, confirm 97A material meets your industry floor-coating compatibility standards.

Q: What is the load rating and maximum safe operating temperature for GWK-EWP40-LW-XL?
A: GWK-EWP40-LW-XL wheels support the full 4000-lb load capacity of the Barrett EWP40 jack when used with properly maintained sealed bearings and axles. Maximum ambient operating temperature is 104F (40C) for continuous operation. Minimum temperature is -4F (-20C) with no temperature dwell required. If your facility operates in cold storage below 0F, the sealed bearings remain functional but polyurethane stiffness increases slightly, which may reduce ride smoothness. Wheels are rated for up to 30 percent duty cycle in continuous operation; exceeding this invokes premature wear.

Q: How long does GWK-EWP40-LW-XL typically last before replacement is needed?
A: Under normal warehouse duty (8-10 hours per day, mixed loading, room temperature), expect 18-24 months of service before visible wear requires replacement. High-traffic operations or cold storage use may shorten lifespan to 12-16 months. If used seasonally, lifespan can extend to 30 months. Sealed bearing life typically matches or exceeds wheel tread wear. Inspect wheels every 6 months; measure tread thickness and look for cracks or flat spots. Replace the kit if tread is worn below 70 percent of original thickness or any bearing shows play.
